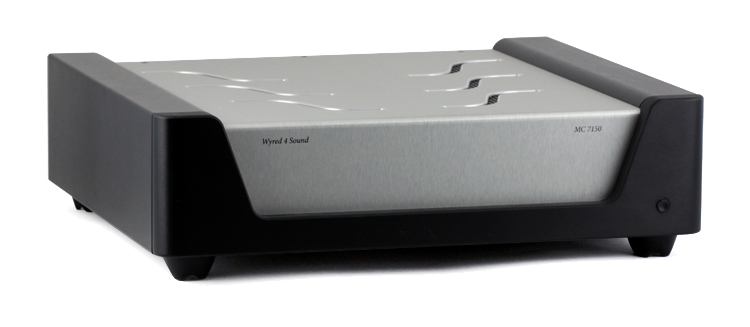

MC 7150

Name: MC 7150
Brand: Wyred 4 Sound
SKU: W4S-MC7150
Price: 1599.0 USD
Availability: InStock
Rating: 5.0 (1 reviews)

$1,599.00 USD

Color:

Silver

Variant

Multi-Channel Amplifier

Built for the enthusiast who’s ready to improve on the low fidelity power of his home theater receiver, the MC7150 has just the right balance of power and efficiency at the right price. Armed with seven channels of Class D amplifier technology, the MC 7150 produces 150 watts of precise, transparent, and efficient power; simply plug the pre-outs of your existing receiver or processor into the MC 7150. Surrounding the MC 7150’s high quality thermal, short circuit and over current protection is a beautifully fabricated chassis, guaranteeing the MC 7150 will run as proficiently on the inside as it looks great on the outside.

Features

150w in 8Ω
External selectable mains voltage 115/230VAC
Differential design
Thermal protection
Short circuit protection
Over current protection
Standard 12VDC trigger
Machined and powder coated front panel
Gold Plated unbalanced (RCA) input
Covered by a 5 YEAR WARRANTY

Specs

Typical THD+N 8Ω (10W out): 0.003%
Power Output 8Ω @ 0.2% THD+N (2 channels driven): 165W
Power Output 8Ω @ 1.0% THD+N (2 channels driven): 180W
Power Output 8Ω @ 0.2% THD+N (1 channels driven): 335W
Power Output 8Ω @ 1.0% THD+N (1 channels driven): 364W
Power Output 8Ω @ 1.0% THD+N (7 channels driven) benchtest: 120W
Output Idle Noise: <150µV
Frequency Response 20Hz-20kHz: ± 0.027db
Unbalanced Input Impedance: 61.9kΩ
Dynamic Range: 106db
Gain: 30db
Sensitivity: 1.15V
Min Load: 4Ω
Idle Power Consumption: <10W
Standby Power Consumption: <0.5W
Dimensions: L 13.75" W 15.75" H 4.625"

Downloads

MC7150_manual_v1.1.pdf (Size: 208.85KB)
