Wyred 4 Sound

DAC-2v2 Series

Name: DAC-2v2 Series
Rating: 5.00 (2 reviews)

$2,299.00

Model Selection:

DAC2v2 Standard Clock DAC2v2 w/ Femto Clock Upgrade DAV2v2 SE

Color:

Anthracite Metallic Gray Black

Voltage:

100V 120V 220/230V

Variant

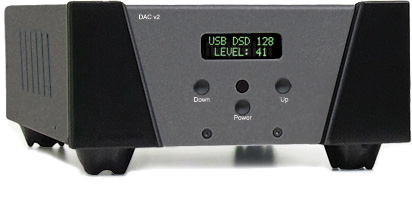

DAC-2v2 Series Digital-to-Analog Converters

Bring your digital sources together with the Wyred 4 Sound DAC-2v2 Series. Connect through USB, optical, coaxial, AES/EBU, or I²S, and use the remote-controlled volume adjustment with your preamplifier or directly with a power amplifier.

USB and I²S support PCM playback up to 32-bit/384kHz and DSD256. Choose the standard DAC-2v2, add the optional Femto-grade clock, or select the DAC-2v2 SE for upgraded components and the Femto clock as standard.

Choose your DAC-2v2

The DAC-2v2 pairs an ESS Sabre 9028PRO DAC chip with proprietary discrete output stages and fully balanced circuitry.

The DAC-2v2 with Femto clock upgrade adds a higher-precision master clock designed to reduce phase jitter and phase noise.

The DAC-2v2 SE uses the ESS Sabre 9038PRO DAC chip and includes the Femto-grade clock. Additional upgrades include Vishay Z-Foil resistors, ultra-low-noise discrete regulators, ultra-fast-recovery Schottky diodes, premium-grade inductors, and a green OLED display.

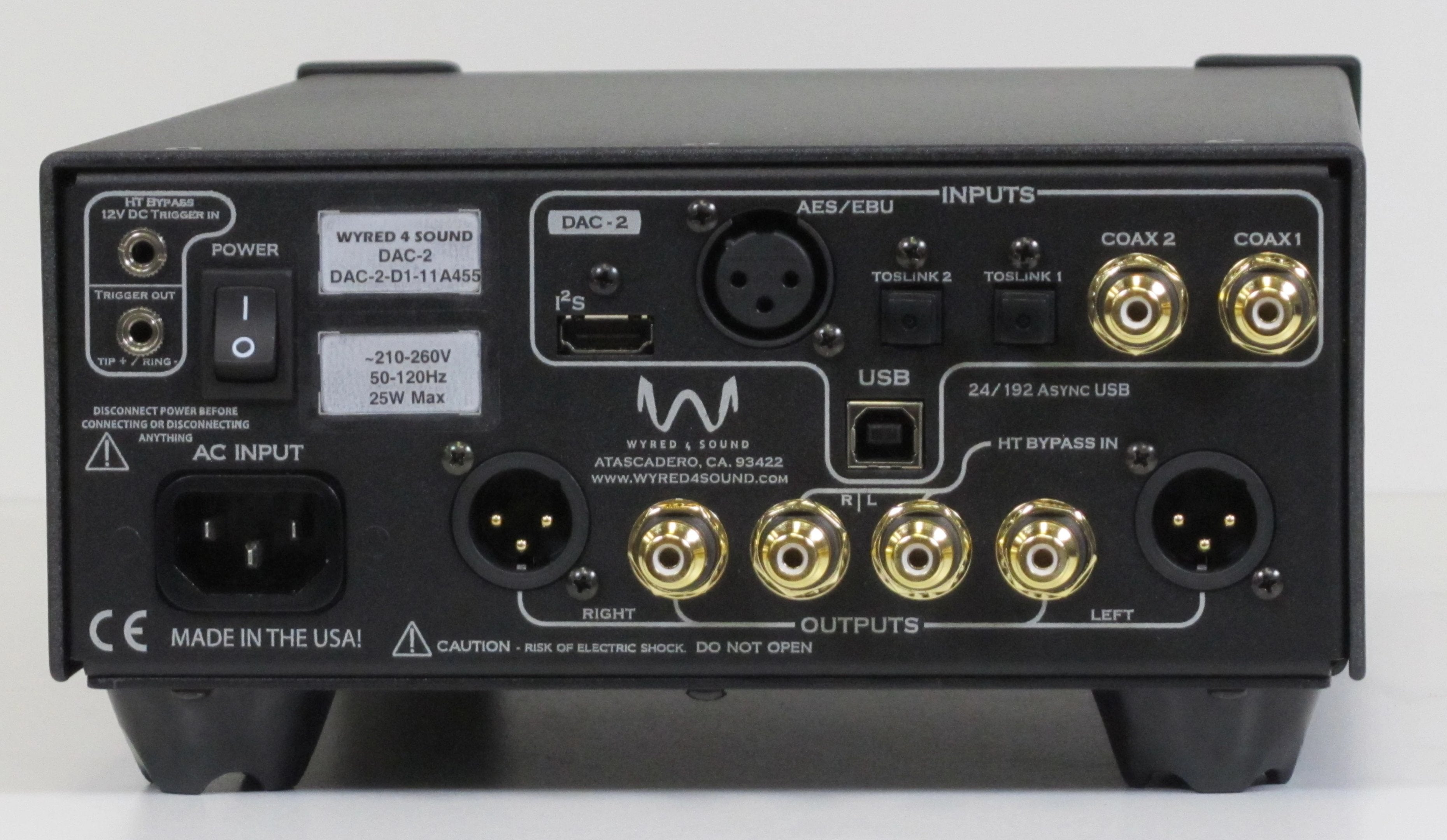

Connect your digital sources

Use the optical, coaxial, AES/EBU, USB, or I²S input to connect compatible digital equipment.

The USB input features galvanic isolation to help keep computer noise out of the audio signal. USB and I²S support PCM up to 32-bit/384kHz and DSD256.

The I²S connection uses an HDMI connector, but it is not a standard HDMI audio/video input. Confirm source compatibility before connecting.

Use with or without a separate preamplifier

Built-in, remote-controlled volume adjustment lets the DAC-2v2 Series connect directly to a power amplifier in an all-digital system. The remote also lets you switch between the DAC’s inputs.

Prefer to keep your existing preamplifier? Select Fixed Mode in the DAC’s setup menu to bypass its volume control and adjust listening levels through your preamplifier.

USB playback and computer compatibility

Mac and Linux support driverless DSD playback. Windows USB playback requires a driver installation.

Already own a DAC-2?

Explore the DAC-2v2 upgrade options for your existing DAC-2 series unit before choosing a new converter.

Features

DAC-2v2 Features:

ESS Sabre 9028PRO 32 bit DAC chip
W4S proprietary discrete output stages for optimum sonics
ESS Time Domain Jitter Eliminator®
Automatic oversampling for precise output filtering
Asynchronous USB input and balanced I²S input support up to 32-bit 384kHz PCM and up to DSD256
Improved audio quality through USB input
USB 2.0 compliancy & ASIO 2.2 (Drivers support for Mac and Linux systems)
Galvanic isolation
Fully balanced design with balanced and unbalanced outputs
Upgradable Digital, Output, and USB boards (designed for future improvements)
Oversized toroidal transformer for solid and noise-free power
88,000uF of filtering with W4S low ESR "super-cap" (same as used in the STP-SE)
VFD display for input, sample rate, volume control, and configuration viewing
Remote control
Defeatable 32 bit volume control
HT Bypass inputs (selectable via DC trigger)
2x Coax inputs
2x Toslink inputs
1x AES/EBU input
1x Balanced I2S input via HDMI cable (note: not standard HDMI cable format)
Proprietary drivers for Windows (no drivers needed for Mac or Linux)
Factory selectable mains 115/230VAC
Compact size (8.5"W x 4.125"H x 13.5"D)
14 lbs.
Covered by a 5 YEAR WARRANTY

DAC-2v2 SE (adds the following to the DAC-2v2):

ESS Sabre 9038PRO 32 bit DAC chip
Custom Vishay Z-Foil resistors (0.1% tolerance and a +/-0.5ppm/°C)
Femto Grade Clock (82 fSec phase jitter)
Ultra-low noise discrete regulators (100+ times quieter and faster than the stock regulator)
Ultra-fast recovery Schottkey diodes
Premium grade inductors
Upgraded fuse
Green OLED display for input, sample rate, volume control, and configuration viewing

Please be aware: Due to the expensive specialty parts as well as the extensive labor involved, DAC-2v2 SE orders are non-refundable.

Specs

DAC-2v2 and 2v2SE Specs:

Typical Distortion THD+N (20-20kHz A-weighted @ Vol. 55): <0.002% THD+N
Frequency Response (20-20kHz): ± 0.065db
S/N Ratio: > 120 db
Crosstalk: > 125 db
Noise (A-weighted): < 7uV
Noise: < 9uV
Balanced Output Level (Vol. 100%): 10.5V (20.1 db)
Unbalanced Output Level (Vol. 100%): 5.2V (14.5 db)
Output Impedance: DAC-2v2: 100Ω, DAC-2v2SE: 50Ω
Channel Tracking: < ± 0.50 db
Dimensions: 8.5"W x 4.125"H x 13.5"D
Weight: 14 lbs.

Downloads

DAC-2v2 series manual v2.1.pdf

DAC-v2 Series USB Drivers
